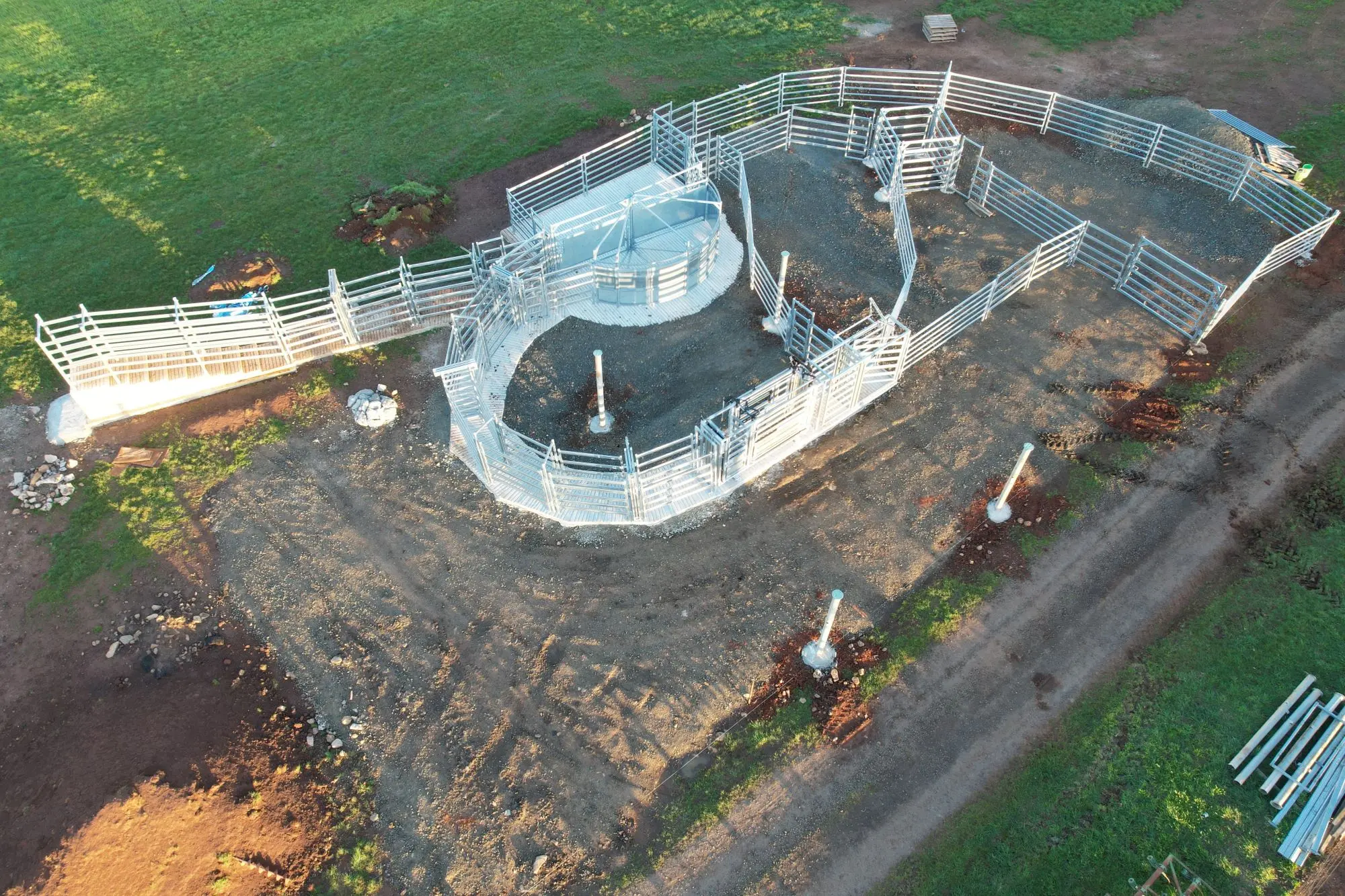

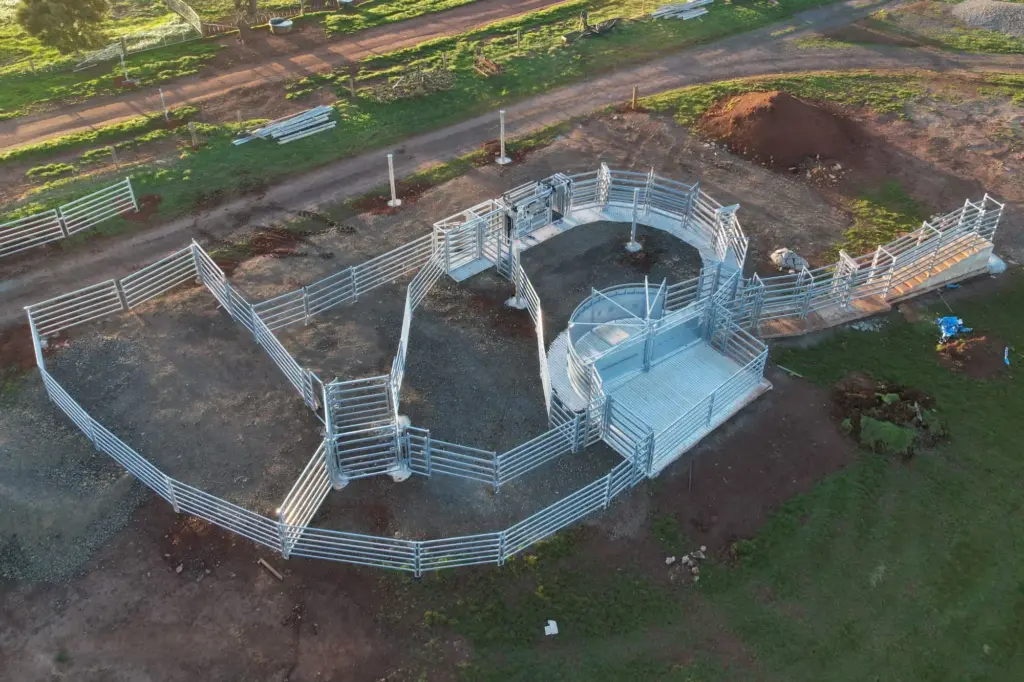

This 120 head cattle yard at Westbury, Tasmania was designed to give the producer a yard that was safe, efficient, and capable of handling larger numbers of cattle when required. The yard includes a rotary force tub, curved race, full side squeeze vet crush, 3 way draft module, concrete loading ramp and a diamond pen to improve access and stock movement throughout the yard.
This project focused on building a yard that would work well for day to day use, while also being capable of handling larger stock numbers when needed.

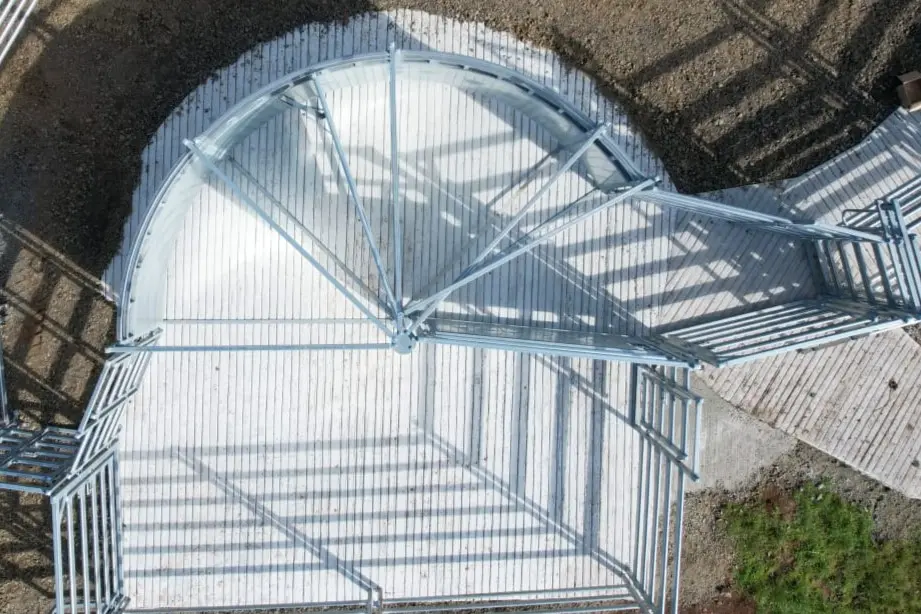

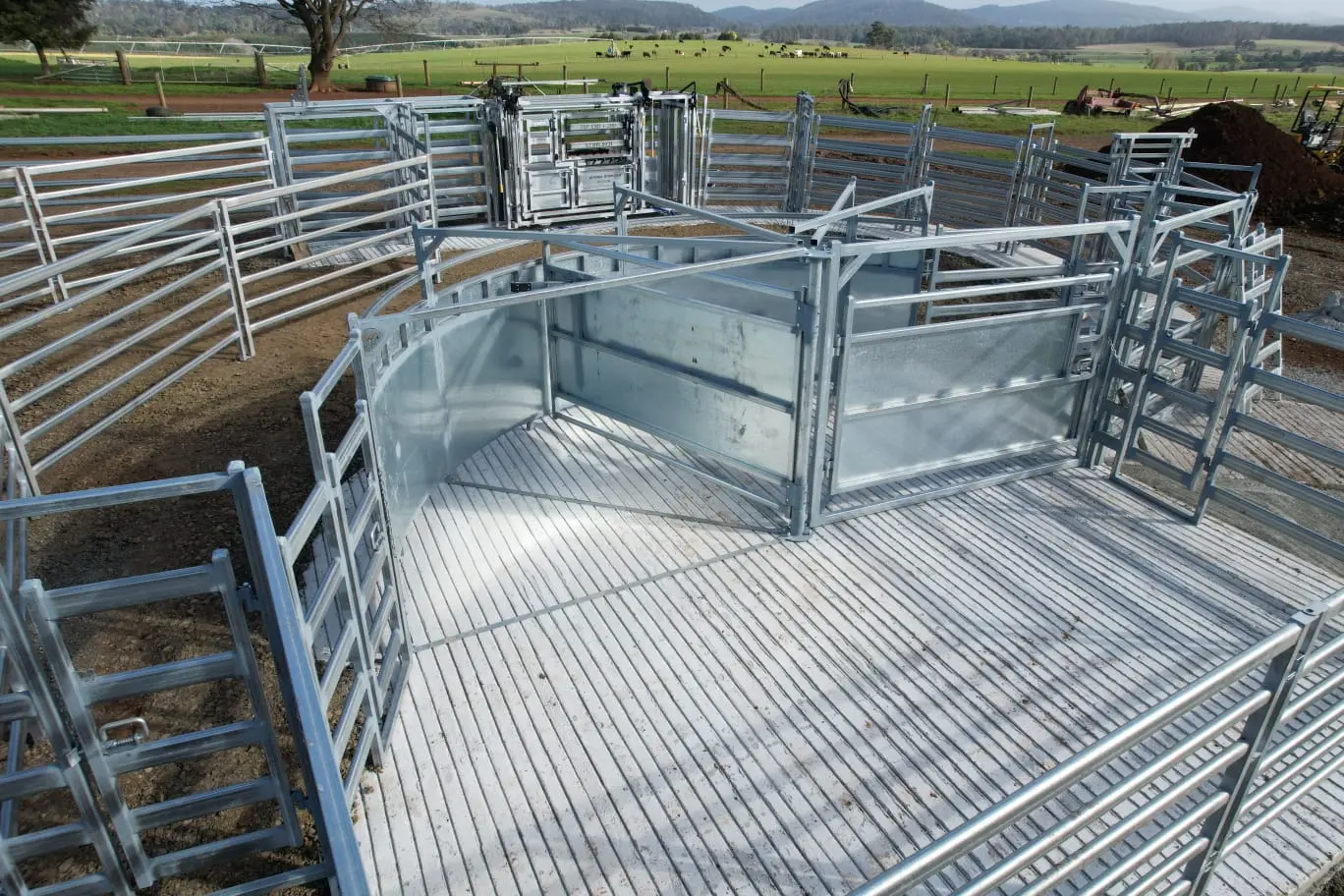

3m Rotary Force Tub
Allows cattle to be guided into the race safely without the handler needing to enter the pen. The circular design works with cattle behaviour, encouraging steady movement into the race and improving the overall flow through the yard.

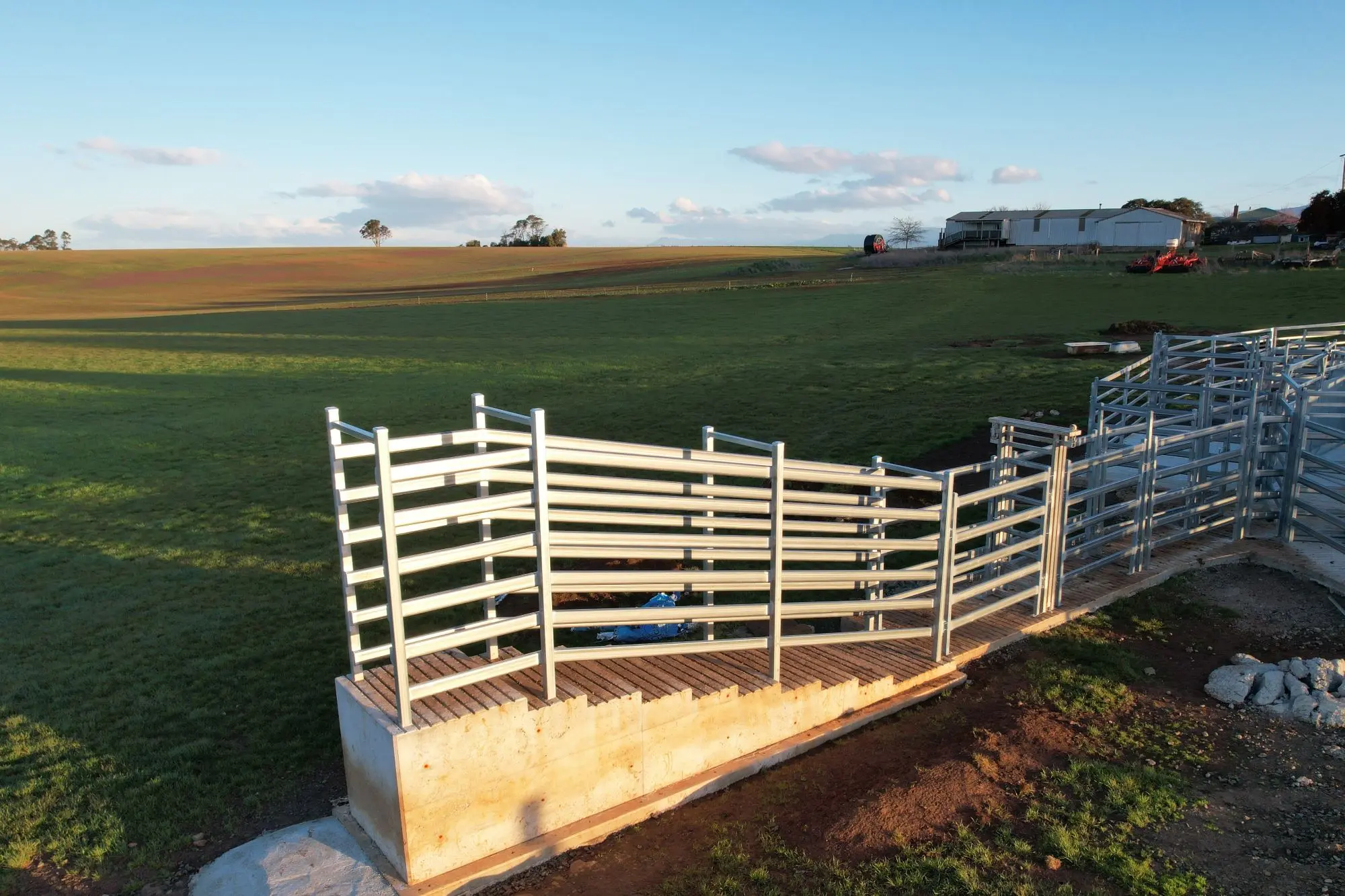

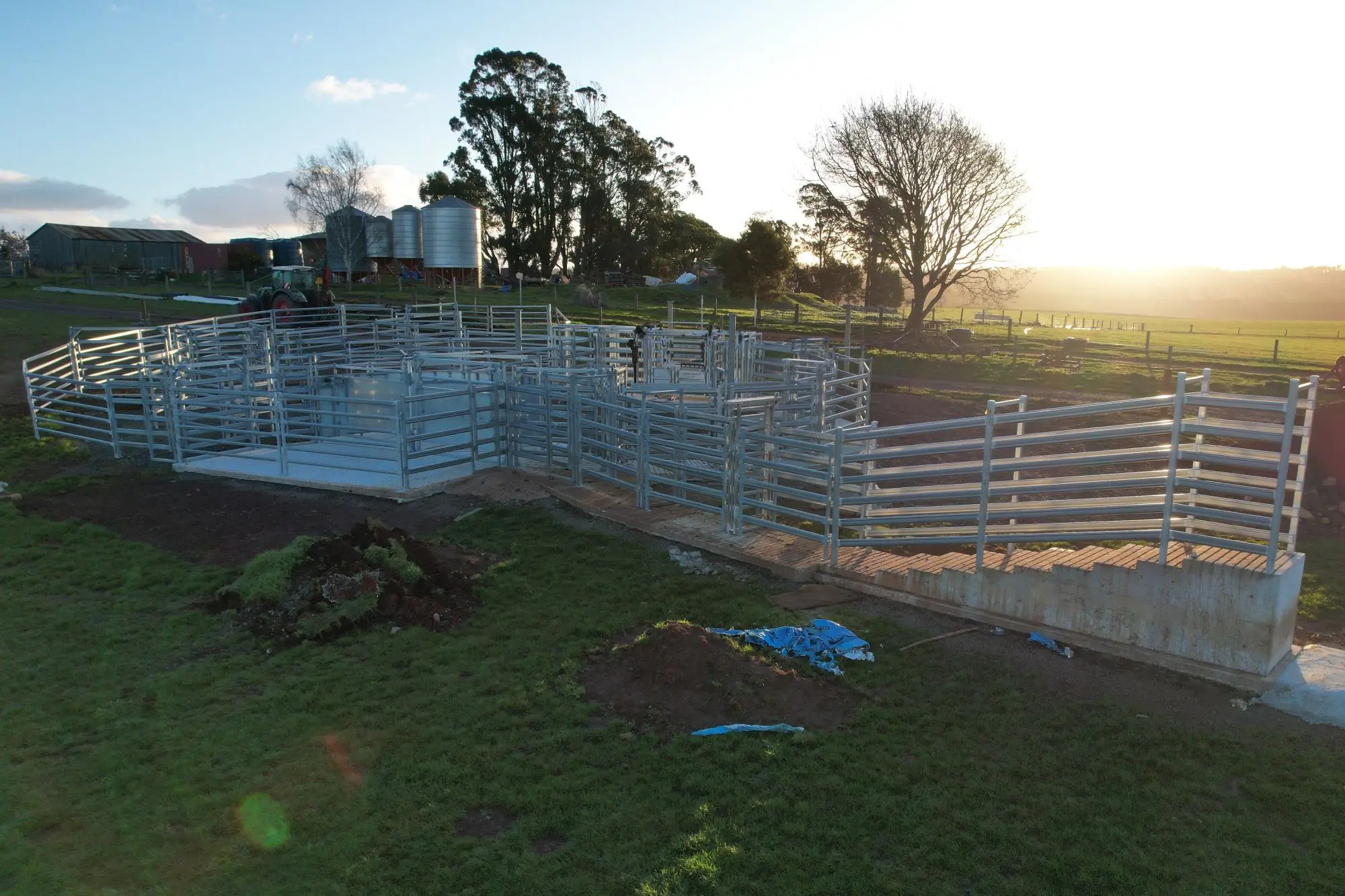

6.2m Concrete Step Ramp
The concrete step ramp provides a safe, gradual incline for loading cattle. The stepped surface improves footing and reduces the risk of slipping, making it safer for livestock while also being durable and long lasting in all weather conditions.

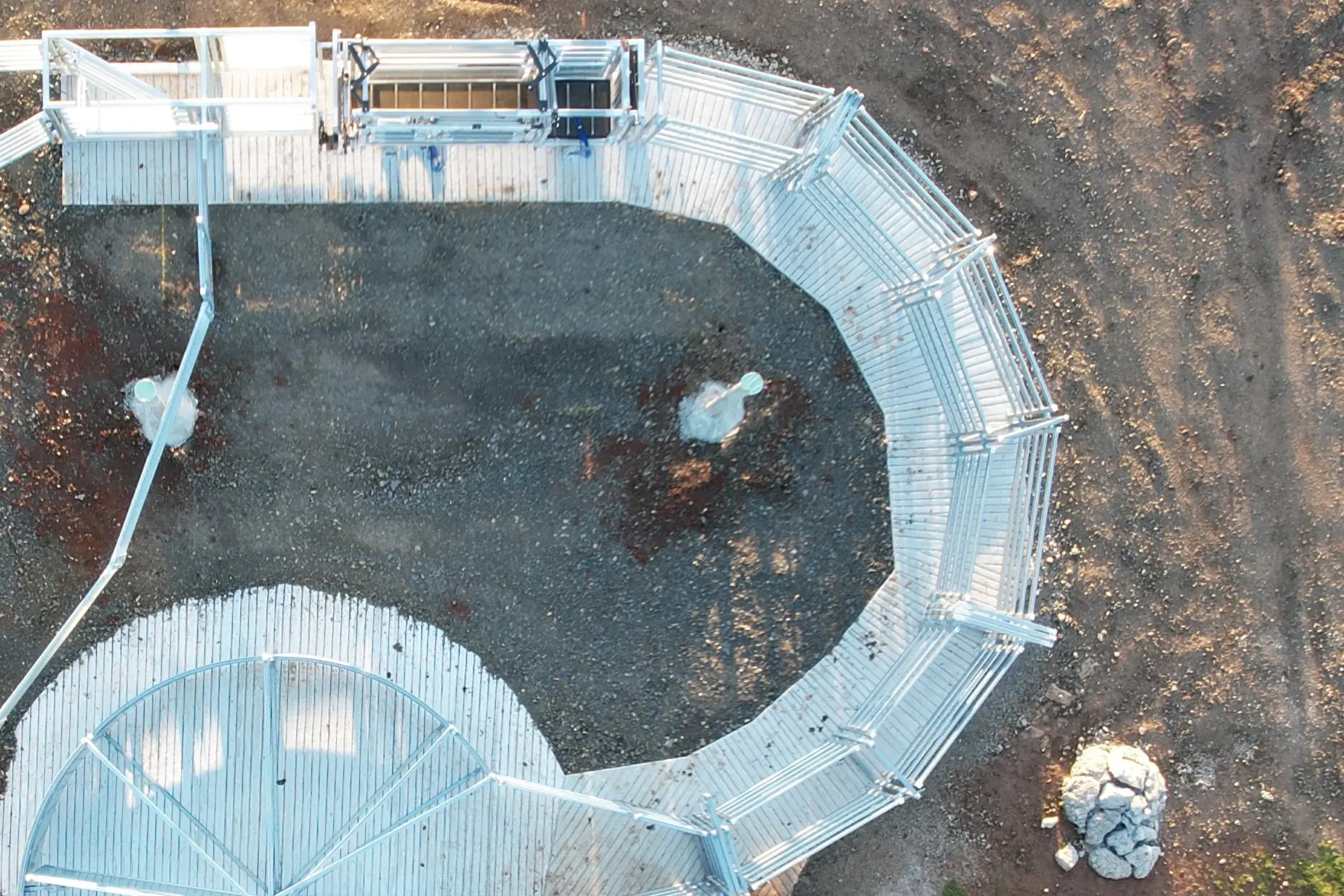

Curved Race
The curved race improves cattle flow and yard efficiency by reducing baulking and encouraging cattle to move forward more naturally. The curve also improves safety and visibility, allowing cattle to see the way forward while limiting distractions ahead.
3 Way Draft Module
The 3 way draft allows cattle to be easily drafted into different pens as they exit the crush. This improves workflow and safety as cattle can be sorted efficiently without the handler needing to be in the pen with them.
Full Side Squeeze Vet Crush
The full side squeeze vet crush provides greater control over the animal during handling and veterinary procedures. Features such as the squeeze sides, chin bar, needle access gates, anti-backing bar and split rear gates allow work to be carried out safely and efficiently.
Diamond Access Pen
The diamond access pen allows easy movement between connecting pens without having to move cattle through multiple gates. This improves access throughout the yard and makes drafting and moving cattle between pens more efficient.

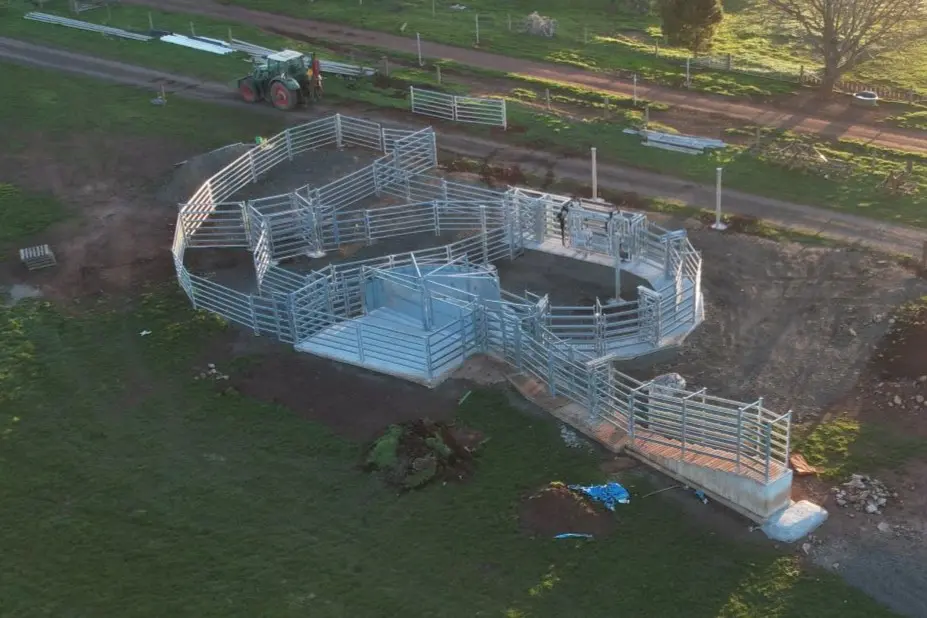

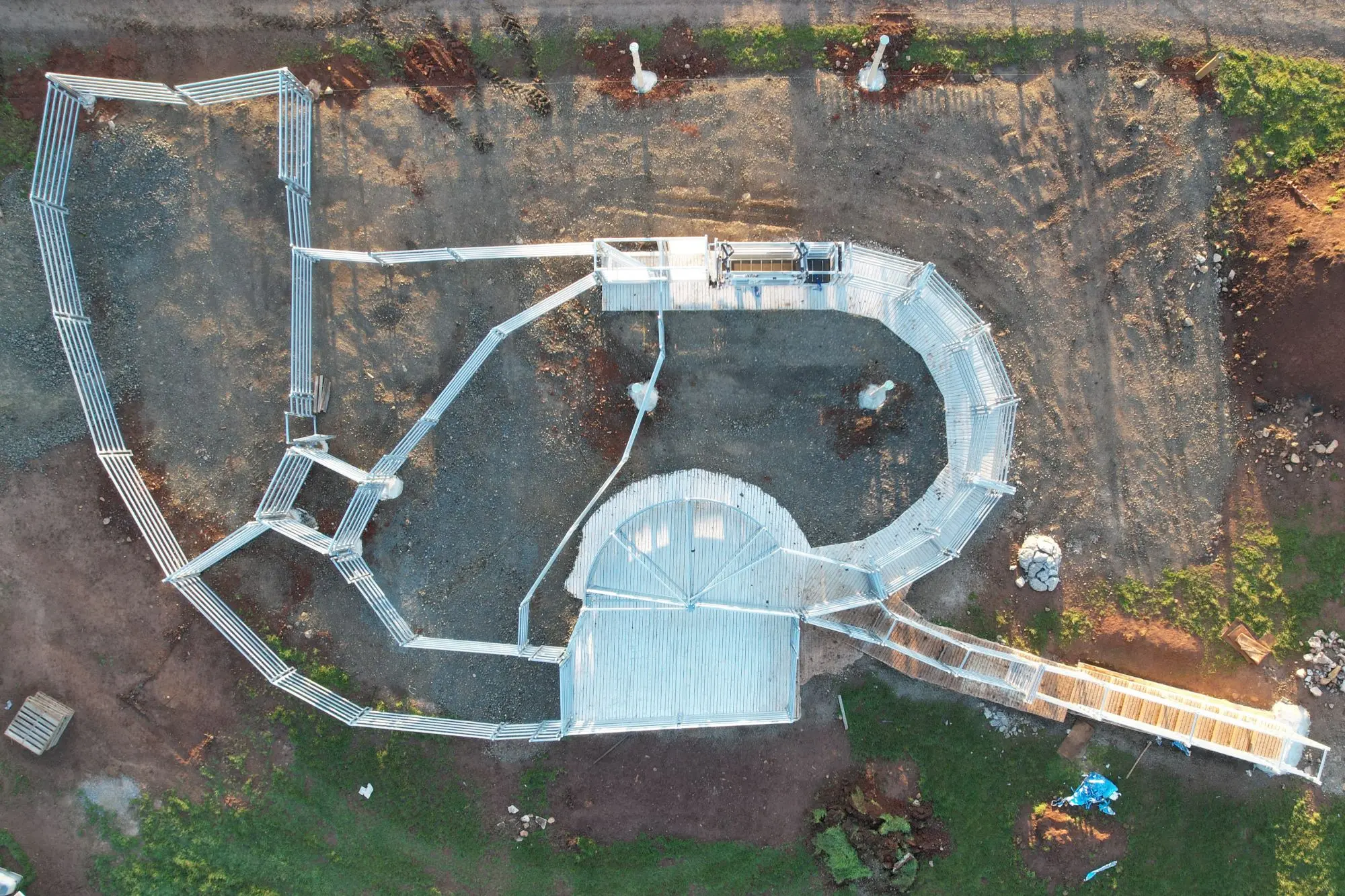

This yard was designed so cattle can move smoothly from the larger holding pens through to the forcing area, curved race, and into the crush, before being drafted into selected pens. Each component has been positioned to reduce sharp turns, remove pressure points, and encourage cattle to move forward calmly.
The diamond-shaped pen in the centre of the yard improves access between pens and allows cattle to be moved and sorted without unnecessary stress or extra labour. It also allows the handler to move stock between pens without having to bring them back through the forcing area.
The result is a yard that is easy to work in, safe for both livestock and handler, and efficient when working cattle.
Good yard design is not just about durability, it is about layout, livestock flow, and safety for both the handler and livestock. A well designed yard should make cattle easier to move, reduce stress on livestock, and allow the handler to work safely and efficiently.
